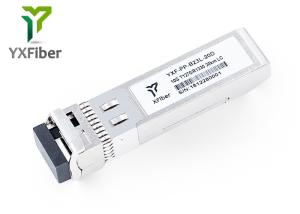

1270nm/1330nm 10 Gbps SMF Fiber 10G SFP+ Module

Name: 1270nm1330nm 10 Gbps SMF Fiber 10G SFP Module
Brand: YXFiber
Price: 16 USD

Wholesale 1270nm/1330nm 10 Gbps SMF Fiber 10G SFP+ Module from china suppliers

Brand Name : YXFiber

Model Number : YXF-PP-B23L-20D

Certification : CE RoHS FCC

Place of Origin : Hubei, China

MOQ : 1pcs

Price : $16-$20/pcs

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 1~3working days after payment

Packaging Details : 10pcs in Plastic tray

Type : Fiber Optic Transceivers

No. of Fiber : 1.

Use : FTTX

Supply Voltage : 3.3V

Power : 1~-6dBm

Data rate : 10G

Wavelength : 1270nm/1330nm

Transmission distance : 20km

Interface : BIDI LC

Fiber Type : SMF

DDMI : Yes

Warranty : 1 Year

Selling Units : Single Item

Single package size : 22X5X6 cm

Single gross weight : 0.100 kg

Package Type : 10pcs/ anti-static box.

Contact Now

10G SFP+ BIDI 20km 1270nm/1330nm LC Connector

Features

l Up to 20km transmission on SMF
l Up to 10.3125Gbps
l 1270nm/1330nm DFB laser and PIN receiver
l SFI electrical interface
l 2-wire interface for integrated Digital Diagnostic monitoring
l SFP+ MSA package with single LC connector
l Hot pluggable
l Very low EMI and excellent ESD protection
l +3.3V power supply
l Power consumption less than 1.0W
l Operating case temperature: 0~+70°C
hp 10g sfp+
mikrotik 10g sfp+
cisco 10gb sfp

Applications

l High-speed storage area networks
l Computer cluster cross-connect
l Custom high-speed data pipes

Compliance

l Compliant with IEEE 802.3ae-2002
l Compliant with MSA SFF-8472
l Compliant with MSA SFF-8431

Specification

Technical Parameters	Descriptions	Technical Parameters	Descriptions
Model Number	YXF-PP-B23L-20D	Interface	LC
Fiber type	SMF	Laser/Detector	DFB/PIN
Form Factor	BIDI SFP	DDM	Yes
Data Rate	10Gbps	Output Power	1~-6dBm
Wavelength	Tx1270/Rx1310nm	Power Supply	3.3V
Distance	20KM	Temperature	0~70°C
Sensitivity	<-14dBm	Certificate	CE,ROHS,FCC,ISO9001,SGS
Selling Units	Single	Warranty	1Year

Transmitter Operating Characteristic-Optical, Electrical
Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Centre Wavelength	λ_C	1250	1270	1290	nm
Spectral Width	Δλ			1	nm	DFB
Side Mode Suppression Ratio	SMSR	30	-	-	dB
Laser Off Power	Poff	-	-	-30	dBm
Average Optical Power	Pavg	-6	-	1	dBm
Extinction Ratio	ER	3.5	-	-	dB
Transmitter Dispersion Penalty	TDP	-	-	3.2	dB
Relative Intensity Noise	RIN₁₂OMA	-	-	-128	dB/Hz
Optical Return Loss Tolerance	ORLT	-	-	12	dB
Operating Data Rate		-	10.3125	-	Gbps
Optical Eye Mask	Compliant with IEEE 802.3ae-2002
Tx Input Diff. Voltage	VI	180	600	1000	mV
Tx Fault	VoL	-0.3	-	0.4	V
Tx Fault	VoH	2.4	-	Vcc+0.3

Receiver Operating Characteristic-Optical, Electrical
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Center Wavelength	λr	1310	1330	1350	nm
Receive Sensitivity In Average Power	Psen	-	-	-14	dBm
Receiver Sensitivity In OMA		-	-	-12.6	dBm	Note1
Stressed Receiver Sensitivity In OMA		-	-	-10.3	dBm	Note1
Los Assert	LosA	-28	-		dBm
Los Dessert	LosD	-	-	-20	dBm
Los Hysteresis	LosH	0.5	-	6	dB
Overload	Pin	-	-	0.5	dBm
Receiver Reflectance		-	-	-12	dB
Operating Data Rate	-	-	10.3125	-	Gbps
Rx Output Diff Voltage	Vo	300	600	1200	mV
