1.25G BIDI 3km 1310nm 1550nm SC DDM Huawei SFP Module

Product Categories

Wuhan Yongxinfeng Science & Technology Co., Ltd.

Contact Now

Name: 125G BIDI 3km 1310nm 1550nm SC DDM Huawei SFP Module
Brand: YXFiber
Price: 6.00 USD

Brand Name : YXFiber

Model Number : YXF-GE-B35S-3D/YXF-GE-B53S-3D

Certification : RoHS, ISO9001

Place of Origin : Hubei, China

MOQ : 1 Pair/Pairs

Price : $6.00 - $8.00 / Pair

Supply Ability : 8000 Piece/Pieces per Day

Delivery Time : 1-3 working days

Packaging Details : 10pcs/ anti-static box.

Payment Terms : Western Union, T/T

Type : Fiber Optic Transceivers

No. of Fiber : 1.

Use : FTTX

Supply Voltage : 3.3V

Power : -3~-9dBm

Data rate : 1.25Gbps

Wavelength : 1310nm/1550nm

Transmission distance : 20km

Interface : BIDI SC

Fiber Type : SMF

DDMI : Yes

Warranty : 1 Year

Application : (Data Center)

Port : Wuhan

Contact Now

Product Description

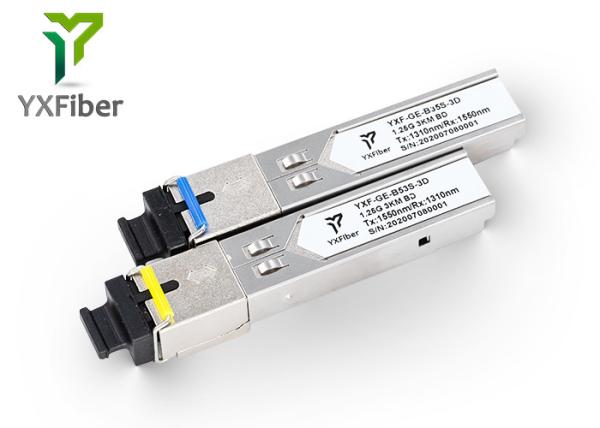

1.25G BIDI 3km 1310nm 1550nm SC DDM Huawei SFP Module

WDM SFP-1G-3км Transceiver 1.25G BIDI 3km 1310nm/1550nm SC DDM Huawei SFP Module

Features: (cisco optical gigabit ethernet sfp,fiber transceiver types)

Parameter	Symbol	Min	Max	Unit
Storage Temperature	TSTG	-40	+85	ºC
Ambient Operating Temperature	T_A	0	70	ºC
Optical Rise/Fall Time	Tr /Tf	-	0.26	ns
Eye Diagram	IEEE 802.3z and ANSI Fibre Channel Compliant
Power Supply Current	Icc	-	200	mA
Extinction Ratio	ER	9	13	dB
Sensitivity	S	-	-22	dBm
Warning	assert>-34dBm,de-assert<-26dBm

Applications

1.25G BIDI 3km 1310nm 1550nm SC DDM Huawei SFP Module

DDM Huawei SFP Module
