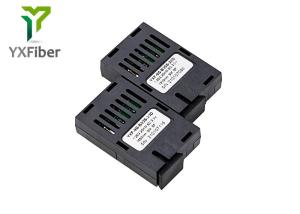

1X9 Optical Transceiver 155Mbps Sm Sc 20km 1310/1550nm Module

  • 1
  • 2
  • 3

Brand Name : YXFiber

Model Number : YXF-9G-B35S-20D/YXF-9G-B53S-20D

Certification : CE ROHS ISO9001 FCC

Place of Origin : China

MOQ : 100 pairs

Price : $6.5/pair

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 1-3 working days

Packaging Details : anti-static plastic bag

data rate : 155Mbps

reach : 20km

wavelength : 1310/1550nm

connector : SC

Package : 1*9

Contact Now

1x9 optical transceiver 155Mbps SM SC 20KM 1310/1550nm module

1X9 Optical Transceiver 155Mbps Sm Sc 20km 1310/1550nm Module

Description:
The YXF-9G-B35S-20D/ YXF-9G-B53S-20D Bidi transceiver series consume low power, operates at 5V compatible DC power supply. The low jitter and high sensitivity are extinguished features with 1310nm/1550nm FP LD transmitter and PIN/TIA receiver. It incorporates RX_Signal Detect (RX_SD) monitor functions with PECL interface. The device is Class I laser safety compliant.

Application

  1. Gigabit Ethernet
  2. 1X Fiber Channel
  3. Optical access network
  4. Other optical links

Feature:

  1. Compliant with IEEE802.3z
  2. Standard 1*9 package
  3. Single SC receptacle optical interface
  4. 1550nm /1310nm FP laser, 10km distance

SD: PECL Logic Level, 3.3V power supply

Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit
Storage Temperature TS -40 85 ºC
Storage Relative Humidity RHS - 95 %
Power Supply VCC - 3.3 V
Lead Solder Temperature TSLD - 260 ºC
Lead Solder Duration tSLD - 10 s

Product Tags:

1X9 Optical Transceiver Module



155Mbps Optical Transceiver Module



20km sc sm module


Wholesale 1X9 Optical Transceiver 155Mbps Sm Sc 20km 1310/1550nm Module from china suppliers
