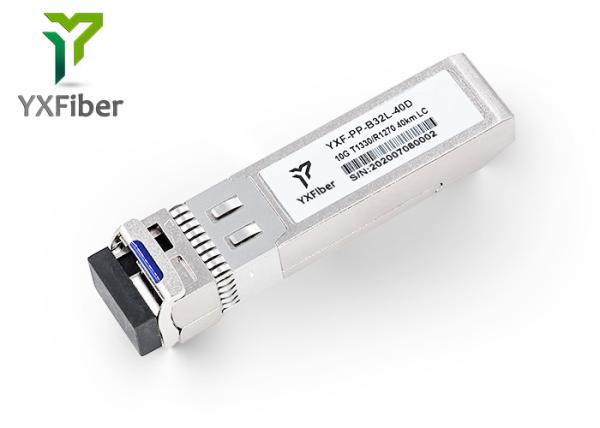

LC WDM DDM BIDI 40km 10G SFP+ Transceiver Module

Product Categories
Wuhan Yongxinfeng Science & Technology Co., Ltd.
Contact Now

LC WDM DDM BIDI 40km 10G SFP+ Transceiver Module

  • 1
  • 2
  • 3

Brand Name : YXFiber

Model Number : YXF-PP-B32L-40D

Certification : CE RoHS FCC

Place of Origin : Hubei, China

MOQ : 1pcs

Price : $15-$17/pcs

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 1~3working days after payment

Packaging Details : 10pcs in Plastic tray

Type : Fiber Optic Transceivers

No. of Fiber : 1.

Use : FTTX

Supply Voltage : 3.3V

Power : 5~1dBm

Data rate : 10G

Wavelength : 1330nm/1270nm

Transmission distance : 40km

Interface : BIDI LC

Fiber Type : SMF

DDMI : Yes

Warranty : 1 Year

Selling Units : Single

Single package size  : 22X5X6 cm

Single gross weight : 0.100 kg

Package Type : 10pcs/ anti-static box.

Contact Now

10G SFP+ BIDI 40km 1330nm/1270nm LC Connector

Features

  • l Up to 40km transmission on SMF
  • l Up to 10.3125Gbps
  • l 1270nm/1330nm DFB laser and PIN receiver
  • l SFI electrical interface
  • l 2-wire interface for integrated Digital Diagnostic monitoring
  • l SFP+ MSA package with single LC connector
  • l Hot pluggable
  • l Very low EMI and excellent ESD protection
  • l +3.3V power supply
  • l Power consumption less than 1.0W
  • l Operating case temperature: 0~+70°C
  • hpe 10g sfp+
  • sfp 10g huawei
  • sfp 10 gigabit ethernet

Technical Parameters Descriptions Technical Parameters Descriptions
Model Number YXF-PP-B32L-40D Interface LC
Fiber type SMF Laser/Detector DFB/PIN
Form Factor BIDI SFP DDM Yes
Data Rate 10Gbps Output Power 5~-1dBm
Wavelength Tx1310/Rx1270nm Power Supply 3.3V
Distance 40KM Temperature 0~70°C
Sensitivity <-15.0dBm Certificate CE,ROHS,FCC,ISO9001,SGS
Selling Units Single Warranty 1Year
